Colorcoated Profile Sheet
Colorcoated Profile Sheet
Our Profile come with Zn-al alloy coating,superior paint quality which is provides sheet longer life and better corrosion resistance.We make sheet from high quality PPGI & PPGL coils from reputed steel makers in india.Our well certified 6-7 high Rib Trapezoidal design make it stronger & increase yield strenght.Our Profile longer span and wider spread ensures ease in installation and save cost.

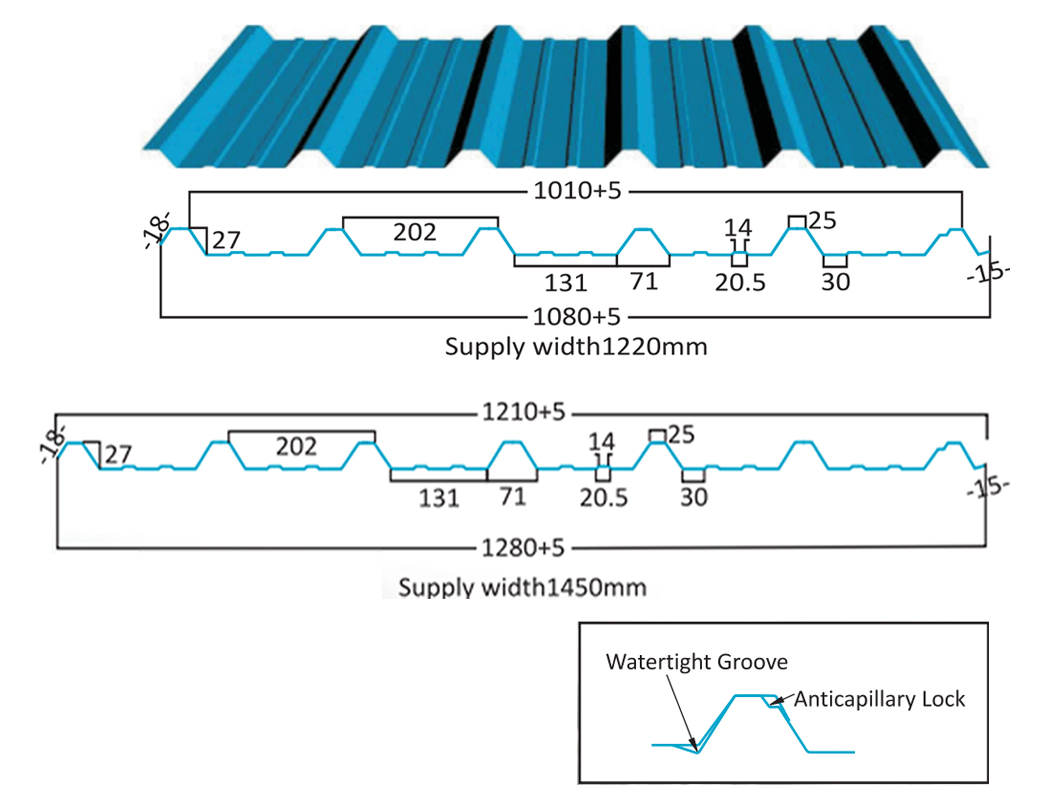

Profile specifications: 6 High Rib Trapezoidal Design
|
Covered width |
1010+5 mm |
Crest width |
26mm/82mm (upper/lower) |
|
Supply width |
1080+5mm |
Crest height |
27 mm |
|
Pitch |
202 mm |
Rib |
6-7 |
|
Thickness |
0.30mm-0.80mm |
Length |
upto 12 mtrs. |
Material Specification :
|
Zinc coating (GI) |
120-275 gsm |
||||||||
|
Al- zinc coating (GL) |
70-200 gsm |
||||||||
|
Guard film (optional) |
30-40 microns (customised also) |
||||||||
|
Paint system |
|
||||||||
|
Material Standards |
JIS G 3312, ASTM A 755,ASTM A 792,EN 10169-1,IS 14246-1995 |
-
Prime QualityOnly prime grade steel is used for manufacturing Profile Sheet. This steel is procured from reputed makers- JSW steel, BHUSHAN steel, Essar etc.
-
Wider CoverageProfile Sheet provides wider coverage width of 1010 mm without effecting the strength of sheet. Thus , by using it one can save on steel. Availability of customised length also saves steel to a great extent.
-
Long LastingSuperior paint quality,design standard and quality manufacturing process boosts up the life of Profile Sheet.Proper installation and selection of material doubles the life of hesesheets as compared to bare galvanized roofing sheets.
-
ValueProfile Sheet gives an elegant look to buildings/sheds. Its attractive design and colours increases the aesthetic value of buildings. It comes in variety of colour shades viz. Light blue(RAL5012), Off white (RAL9002), Capri blue (RAL5019), Brick red , Environmental green and other customized colours.

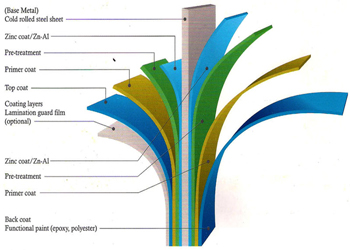

Advanced Paint Technology:
Bajrang Industries:-Pre-painted products are offered in a wide range of paints systems like Regular Modified Polyester(RMP),Silicon Modified Polyester(SMP), Poly Vinyl Di fluoride(PVDF).The substrate metal has primary layer of prime caoting on top and bottom surface for best adhesion with the paint systems. The advanced coating system resist cracking and peeling,even in heavy forming operation.
Colour Shades:

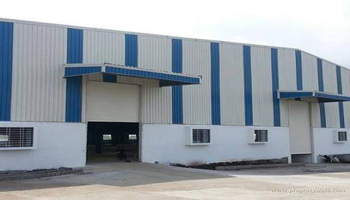

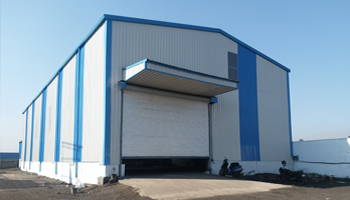

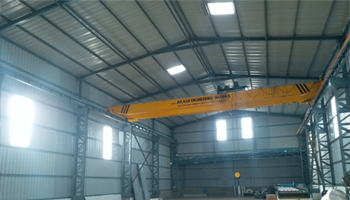

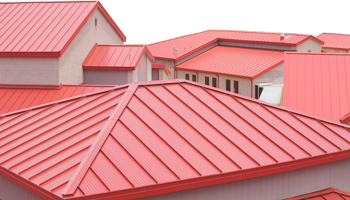

Applications:
